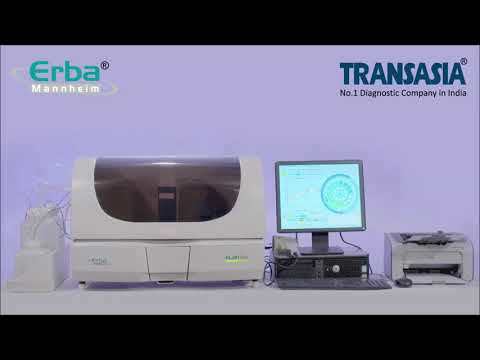

Erba ELAN 30s

Product Description:

ELAN 30s is a unique one of its kind, fully automated ELISA microwell strip processor platform, with a capacity of processing up to 6 different assays in 30 strips simultaneously.
It is a compact, benchtop, walk away true open system with, intuitive & Easy-to-use software that guides users through assay setup. A real-time run dashboard monitors assay status at all levels.
Elan 30s is not only suitable for small & mid-sized laboratories, but can also be a compliment in high throughput labs for assays not available or affordable on other platforms.

Product Features:

• Compact benchtop model for ELISA workflow management
• Six different tests in a batch
• Auto self-check mode, liquid level detection & dispense monitoring
• User-friendly software guided ELISA process
• Single probe for dispensing samples and reagents (tips optional)
• Inbuilt ambient temperature enclosed incubator & shaker
• Automated well-washing performed at customized volumes & cycles
• Built-in ELISA reader: Single & dual-wavelength reading
• 16 manifold washer - 8 dedicated needles for aspiration & 8 for dispensing to avoid cross-contamination (3 wash buffer options)
• QC reports generated using (L-J chart/CV evolution/OD evolution/Conc. Evolution)
• 59 sample locations from which 18 locations can be used for reagent loading as and when required.
• Bio-hazard disposal unit
• In-built facility with a probe for pipetting, Incubator, shaker, ELISA washer & reader
• A computer for user-friendly operation and easy online reporting & documentation
• Economical and easy maintenance
• CE marked

Product Applications:

Dimensions:

• Length: 1058mm 3.5ft
• Breadth: 520mm 1.8ft
• Height: 533mm 1.8ft
• Weight: 65kgs
• Shipping weight: 95kgs

Power Supply:

• Voltage: AC 110 – 240 V
• Frequency: 50 Hz / 60 Hz
• Power consumption: 300 W

General Specifications:

• Self-check at startup: Yes
• Assay per batch: Up to 6 test
• Number of strips: 30 × 8 = 240 micro wells
• Sample tube size: 12 mm × 75 mm (5ml)
• Reagent bottle: 24 × 20 ml
• Controls & Calibrators: 30 × 1.5 ml
• Location: 41 to 58 can be used for loading reagents in 5mL test tube
• Sample dilution: In test tubes
• Tips capacity: 204 tips

Reader Specifications:

• Dynamic range: 0.0 - 4.0 O.D
• Wavelength range: 400 - 800 nm
• Filter slots: 405 nm, 450 nm, 492 nm & 630 nm (3 open positions)
• Reading mode: Single & Dual
• Reading time: 20 sec per strip for single wavelength
• Precision: At 405nm and 450nm :
  < 2% CV at 0.5 to 2.0 OD
• Accuracy: ± 3%OD  at 0.25 OD to 2.5 OD

Washer Specifications:

• Manifold configuration: 8 for aspiration & 8 for dispensing
• Wash cycle: 1 to 9 (repeatable)
• Residual volume: < 5 μl
• Washer buffer capacity: 3 × 1L
• Low buffer alarm
• Soak time: 20 to 60 sec
• Dispense pressure: Pre-set
• Rinse function
• Waste bottle: 1 × 2L

Pipetting Specifications:

• Dispensing mode: Fixed needle or Disposable tips
• Sample tips range: 300 μl (5-200 μl)
• Reagent tip range: 300 μl (10-200 μl)
• Precision sample tip: < 2% CV at 10 μl
  < 1% CV at 100 μl
• Precision reagent tip: +/- 2 % of the Target Volume above 50 μl

Process Security:

• Liquid level sensing
• Level sensor system: Conductive
• Clot detection
• Tip detection
• Alarms

Software:

• Computer include: Desktop PC running TBM O.S (Windows based
• Controlling software: ELAN 30s
• Work protocols (assay): Unlimited
• Data Processing: Quantitative & Qualitative
• Levey-Jennings
• West guard rules
• Process reporting: Event log + error log
• Automatic error recovery
• Password access control

Consumables:

• Probe clean solution: XL Wash
• Carbonated disposable tips: Sample tips (optional)
• Reagent tips (optional)
