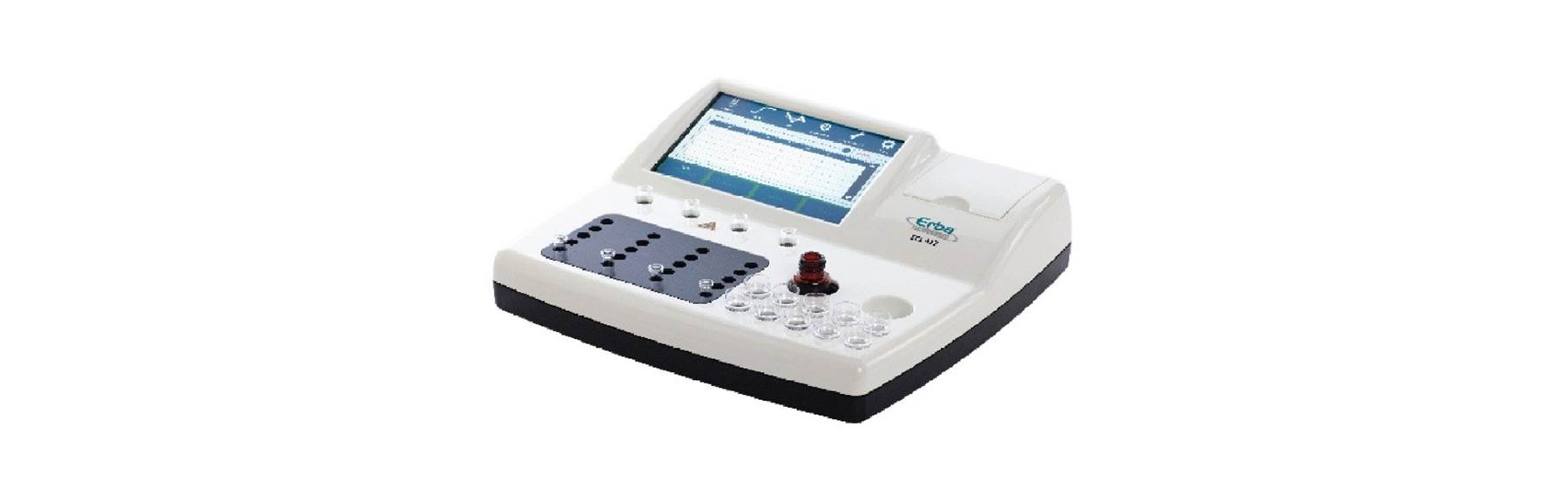

ECL 412

Product Description:

It’s an advanced analyzer for Complete Hemostasis. This four channel coagulation analyzer redefines the benefits in its class. Erba ECL 412, can perform PT, APTT, Fibrinogen, Thrombin Time , All Factors, Lupus , Protein S, Protein C , Antithrombin III and DDimer.

Product Features:

• Clotting Tests such as PT, aPTT, Fibrinogen, Thrombin time, Factors, Lupus anticoagulant, Protein S performed using Light scatter principle.
• Protein C, Antithrombin III done by Chromogenic Principle
• Tests like D Dimer performed using Immuno-turbidimetry principle
• Interactive touch screen interface
• Clotting Graph provides details of the clotting test
• Cuvette and reagent management software
• Twelve levels of QC with Levy-Jennings Plot- Identifies random and systematic errors
• Temperature stability at 37 degree C to perform the tests
• Low Reagent Consumption
• USB Connectivity
• CE mark

Product Applications:

• ECL 412 has uses in various routine IVD labs for doing routine PT and aPTT
• It has application in Blood Banks for Quality Control of Fibrinogen and Factor VIII
• It is used as Standby to bigger systems, in accredited centers
• It is used in Research Facilities to perform PT and aPTT on animal samples such as rat, mouse, rabbit, hamsters etc

General Specifications:

• 4 channel semi-automated hemostasis instrument
• It can perform 4 simultaneous tests of the same parameter
• Sample id can be 14 digits alphanumeric, with progressive id or custom id options
• It is also possible to have a second row of assay preparation/incubation during the analysis of the current line, using preparation line option
• It can run assays in single or duplicate (programmable per assay)
• Optically detects and automatically moves to the next assay steps and auto starts the measurements

Tests principles:

• Clotting (scattered light at 640nm)
• Chromogenic (colorimetry at 405nm)
• Immuno-turbidimetric (turbidimetry at 800nm)

Dimensions / Weight:

• Dimension : 300 x 290 x 90 mm
• Weight : 3 kgs

Environmental requirements:

• Operating Temperature : 17-32°C
• Humidity: Max. 80% Relative Humidity, non-condensing

Power:

• Power Supply: 100-240 VAC and 50/60 Hz
• Power Consumption: 45 Watts
• In-Rush Power: 150VA or less

Calibrations:

• Up to 6 calibration levels per assay
• Storage of the active calibration curve

Quality Controls:

• Up to 12 different control names total can be assigned to any given assay
• Automatic Levey-Jennings plotting
• Automatic statistics calculation
• Storage of Quality Control results

Stored results:

• Independent storage allocation in the instrument memory for Quality Control (QC) and patient determinations
• Up to 600 results for QC determinations (run in duplicate)
• Up to 900 results for patients (run in duplicate)
• New results automatically replace the oldest results of the appropriate category past the maximum storage allowance
• Reaction curves are exclusively stored on the external USB pendrive.
• Regular backup and file purging is recommended from the USB pendrive to insure rapid operations. (We recommend at least a monthly purge from a computer to back up and remove CH files)
• USB pendrive , FAT32 formatted
