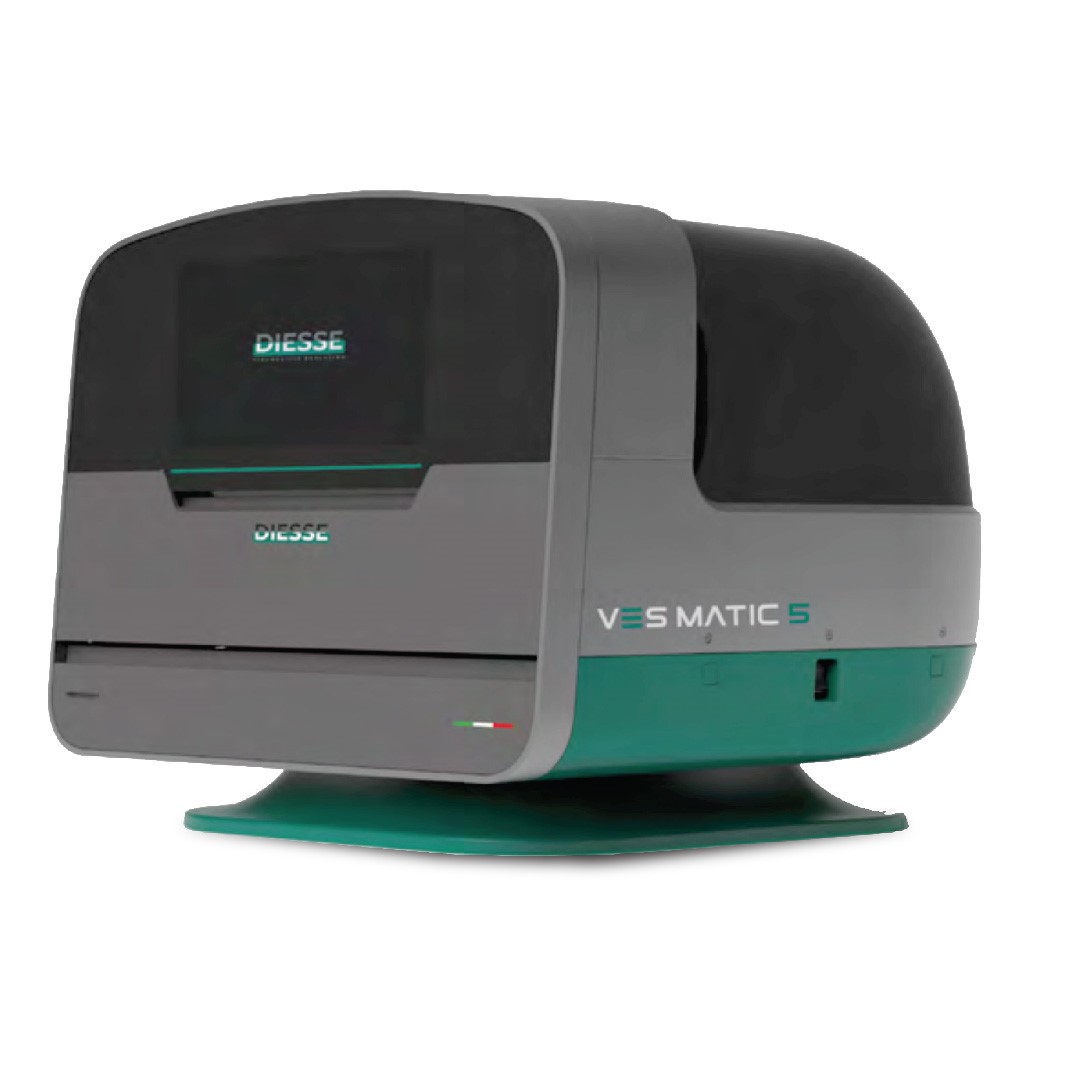

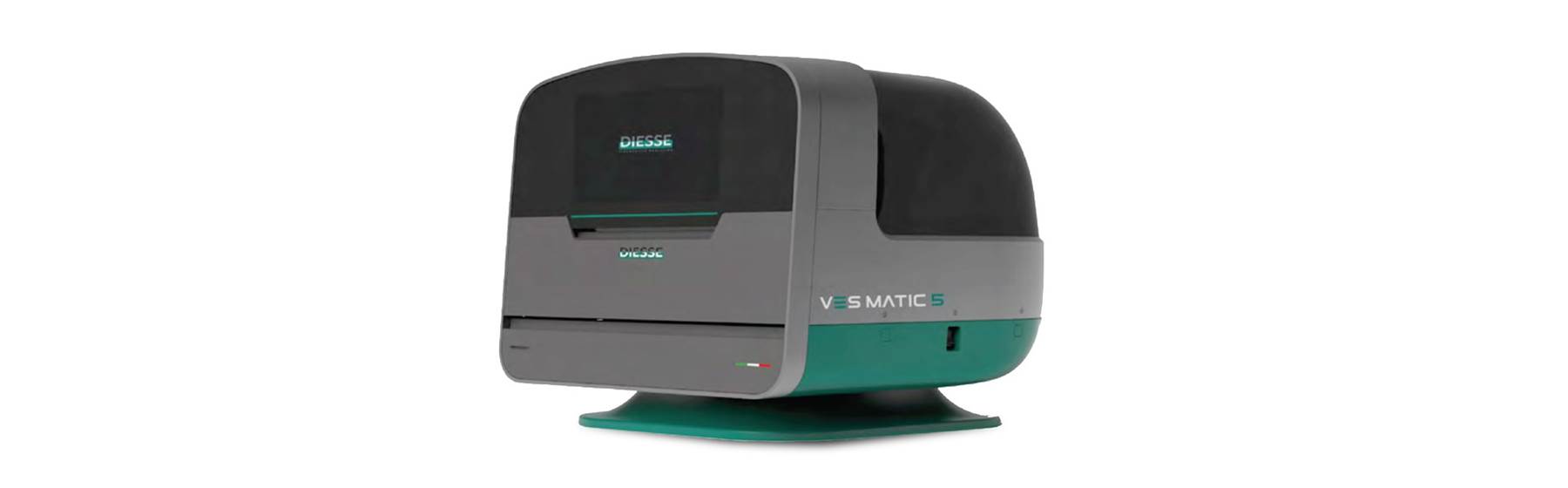

Ves-matic 5

VES MATIC 5 is the next-generation automated module manufactured by Diesse Diagnostica (Italy), a highly advanced, Intelligent, Intuitive & Interactive Graphic user Interface for estimating ESR using EDTA samples.

Product Description:

VES MATIC 5 is the next-generation automated module manufactured by Diesse Diagnostica (Italy), a highly advanced, Intelligent, Intuitive & Interactive Graphic user Interface for estimating ESR using  EDTA samples.

Product Features:

  • Automated instrument for the determination of ESR directly from EDTA vacutainers
  • Faster TAT by loading 216 sample tubes at a time
  • Pediatric samples can be processed in microtainers
  • Reliable results with Temperature correction facility
  • Accurate results by eliminating manual HCT correction in Anaemic samples
  • Real-Time monitoring of samples
  • Detection of Lipemic, Hemolyzed, Coagulated samples
  • Standardization in mixing with Inbuilt Mixer

Analyser

P. Code

Product Name

Pack size

Vesmatic 5

165941

Next 5K Transponder

1x 5000

Vesmatic 5

165942

Next 10 K Transponder

1x 10000

Display  - 19" Full HD (1920x1080) LCD with PCAP Touch Screen

Peripheral Control - based on Everex distributed control system with peripheral motor control boards

Operating system  - Linux

Analysis module - 89 Positions for Sample Tubes

Sample Loading  - up to 18 racks simultaneously

Throughput  - 190 samples per hour. First result after 28 minutes

Walk away mode -     Supported

Continuous loading   - Supported

Sample mixing -  with multiple 180° rotations of the tubes

Collection of analysed samples - reinserted into the original loading rack

LIS Connection - Multiple LIS connection protocols are available: ASTM / Proprietary

Remote diagnostics -  available via Ethernet connection.

Printer -Alphanumeric with 58mm-wide thermal paper, 36 characters per line, speed 20 mm/sec.

Imaging System - 2 high resolution cameras for sample identification and analysis; 1 standard camera for internal inspection

Image processor  - Dedicated Quad Core CPU with integrated GPU for real-time HD image processing of samples

Temperature range in operation  - from +15 to + 35°C; Storage from + 5°C to + 45°C

Humidity range - from 20% to 80% without condensation

Central unit - Quad core ARM Cortex A-53 CPU ARM Cortex A-53, 16 GB eMMC, 4 GB RAM

Interfaces - 2 x RS232C, 2 Host USB, 1 Client USB, Ethernet

Protection category - CLASS I

Safety standard - EN 61010-1, EN 61010-2-081, EN 61010-2-101

EMC - EN61326-1

Installation category - II

Mains voltage -  230VAC@50Hz; US/Canada: 110-120Vac@60Hz

Electrical energy consumption -  420VA

Fuse block  -  2 x 5.0 AT (delayed) (5 x 20 mm) UL

Dimensions (mm) - 850 (W) x 750 (H) x 830 (D)

Weight - 80 kg
