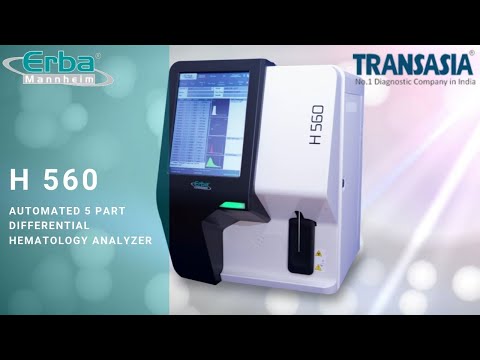

H 560 ®

Product Description:

 Automated 5 Part Differential Analyser

Product Features:

• Tri-angle laser-based flow cytometry for WBC and differentials enumeration
• Flagging to identify Malaria cases of P.Vivax
• 36 parameters including NLR, NRBC, and CWBC
• With new updated software screen for the Mentzer Index and RDWI Index for differentiating Iron Deficiency Anemia from Beta Thalassemia
• Electrical impedance method for RBC and Platelet enumeration
• Three reagents usage ensure cost-effectiveness
• 15 µl sample volume
• Throughput 60 samples/ hr
• 3 counting modes -Whole blood, Capillary and pre-dilute
• Large storage capacity of 100000 samples
• Bidirectional Interfacing
• Assured Quality with NABL compliance
• QR code scanner facilitates direct inputs of QC values
• Large coloured LCD touch screen of 10.4 inch

Product Applications: CBC + Diff Analysis

Mode Type:

Whole blood, Predilute, Capillary

36 Parameters:

CBC: WBC, RBC, Hb, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW-CV, PDW-SD, P-LCR, P-LCC.

DIFF: Neutrophils % & #, Lymphocytes % & #, Monocytes % & #, Eosinophils % & #, Basophils % & # *ALY % & #, *LIC % & #, *NRBC % & #, *CWBC, *NLR, RDWI & MENTZER INDEX

*Research use only

Principle of measurement:

RBC/PLT: Electrical Impedance

WBC + DIFF: Tri-angle Laser Flowcytometry

Hb: Cyanide-Free Colorimetry

MCV: Measured

HCT: Calculated

Histograms:

 3 (WBC/RBC/PLT)

Scattergram:

3 (2D ), 1 (WBC/Baso)

Throughput:

upto 60 Tests/Hr

QR Code Reader:

For reading sample bar codes & QC values

Sample Volume:

Whole blood : 15 µL

Pre-diluted : 20 µL

Capillary : 20 µL

CBC Mode : 11 µL

Linearity Range:

WBC : 0 - 300 ( x 10³/µL)

RBC : 0.00 – 8.50 (x 10³/µL)

Hb : 0 - 25.0 (g/dL)

HCT : 0 - 67 (%)

PLT : 0 - 3000 (x 10³/µL)

Calibrator:

ELite H Cal

Tri-level Controls:

Elite H5 CON L, N, H

Open Vial Stability at 2-8˚C:

16 Days

Data Storage:

100,000 Results with Graphs, 100 calibrator results, Reagent log storage for 6 months

Quality Control:

500 files with L-J graph

X-Bar Analysis

Dimension (mm):

364x498x431

Weight (Kg):

26.5

Reagents:

Erba H560 Dil

Erba H560Lyse1

Erba H560Lyse2

Elite H Clean

Interfaces:

4 USB ports (For connecting external devices including external printer) + 1 LAN Port (HL 7, TCP/IP; LIS connectivity)

Operating Environment Temperature:

15-40˚C

Humidity:

30-90%

Power Requirement:

A.C.100-240V with built-in voltage stabiliser

50/60Hz, 200VA
