ESL 30 :: Transasia Bio-Medicals

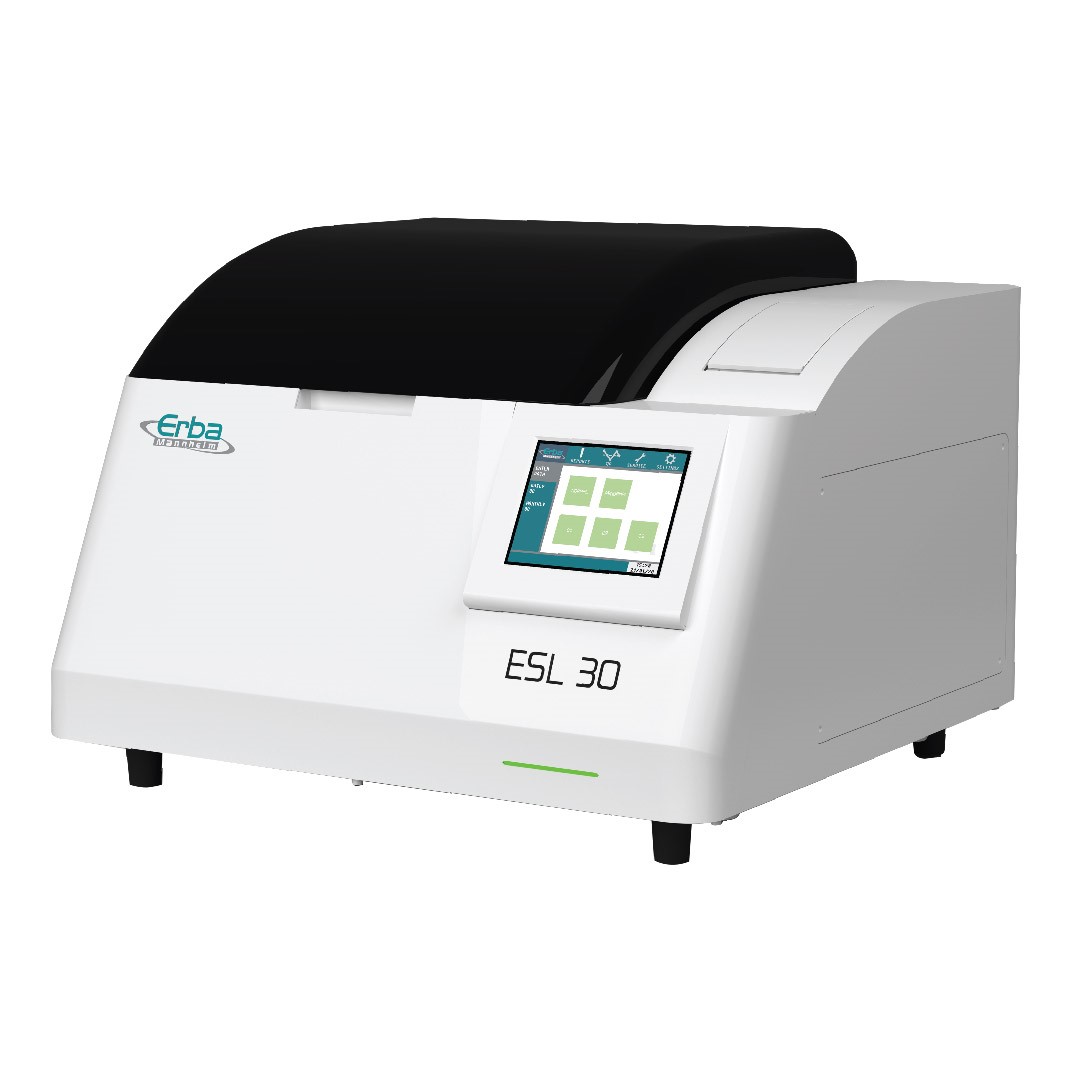

ESL 30

A Truly Automated Walkaway ESR Analyzer for Midsize labs (Meets CLSI and ICSH Guidelines)

Product Description:

A Truly Automated Walkaway ESR Analyzer for Midsize labs (Meets CLSI and ICSH Guidelines)

Product Features:

  • Gold Standard Method -Measures all three phases of sedimentation as per Westergren method
  • Dry Technology - No sample & reagent consumption, no waste generation
  • Faster TAT - Throughput of 60 samples/hr
  • Zero consumption cost by using EDTA tubes
  • HCT correction feature eliminates manual correction in Anaemic samples
  • Temperature correction at 18° ensures reliable results
  • No additional cost of Calibration

Analyzer

Product Code

Product Name

Pack size

ESL 30

122020

SMART CARD 2500

1x 2500

ESL 30

122021

SMART CARD 5000

1x 5000

Type of Sample : EDTA
Sample Volume :  > 1.5 ml
Display : TFT high resolution 640 * 480 dots with LED Backlight
Result Cycle Time : < 25 min
Measuring Range : 0-140 mm/hr
Touch screen : 5.7 inch resistive TFT high resolution
Temperature Correction : At 18 Degree
HCT Correction : HCT Correction facility available for Anaemic samples
QC : Inbuilt Quality Control program with LJ Graphs
Quality Control Level : 3 Level QC with LJ Graph
QC Data Storage : 250 QC results
Sample position : 30 sample position
Throughput : 60 samples per hour
Sample Consumption : No
Type of Mode : Continuous mode
STAT Facility : Available
Calibration Requirement : No

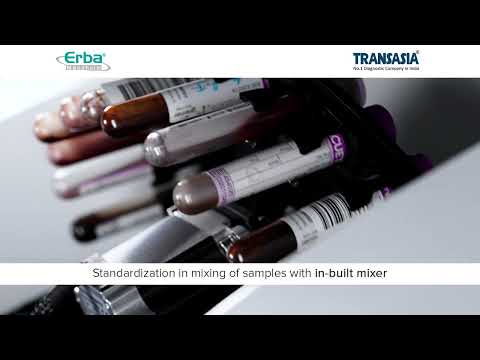

Mixer : Inbuilt Mixer
Printer : Inbuilt Printer
Barcode reader : Inbuilt Barcode reader
Data Storage : 5000 results
Operating Temperature : 20 - 30 Degree Celsius
Storage Temperature : 15 - 35 Degree Celsius
Relative Humidity : Max. 80% RH
Power Adapter external : 240V DC , 90W
Main supply : 100V-240V AC, 50/60 Hz (input for power adapter )
Dimension (mm) : 550(L) x 500 (W) x 395 (H)
Weight : 20 kg (Approx )

Reagents used with this 'ESL 30'
