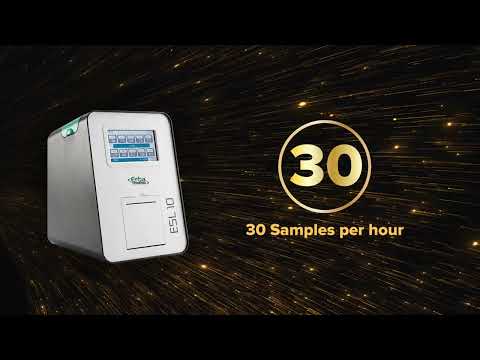

ESL 10 is a truly automated walkaway ESR analyzer which standardize the workflow of lab resulting in improved turnaround time, documentation and laboratory safety. It works on modified Westergren method.

• Accurate results in 20 minutes

• Compatible with EDTA vacutainers

• Provision for processing paediatric samples

• HCT correction for samples

• Excellent correlation with the Westergren method

• User-friendly touchscreen interface

• In-built printer

• Data storage of 9,000 patient records

• LIS interfacing

Consumables:

Code

Product Description

Pack size

122672

Smart Card 200

200x1



1

Number of simultaneous samples

10

2

Sample Tube

EDTA

3

Sample Mixing

Manual, before placement

4

Sample Identification

By Position,Optional Hand held barcode reader

5

Time to Result

20 minutes

6

Result Adaptation

Correction for Ambient temperature, Hematocrit , same as that for ESL-30

7

User interface-Display

4.3"Color Touch Panel

8

Light source / Signal measurement

LED / Analouge Photodiode

9

Built in thermal Printer

2" paper, Thermal

10

External Ports

USB - Printer ( Rear )

USB - for back up / Hand held Barcode reader ( in front)

USB host - PC connectivity ( Rear)

11

Dimensions

175 mm (W) * 205 mm (D) * 245mm (H).

12

Weight

Less than 2kgs

13

Power Supply

230V/110V,Universal 60W, 50Hz / 60Hz

14

Analysis method

Modified westergren

15

Measuring range

1- 140mm/hour

16

Throughput

30test/hour

17

Reading resolution

 +1mm

18

Operation environment

15 to 30 deg, 20% to 80 & relative humidity (Non condensing)

19

Memory

9000 samples result
