VERTEX Hb

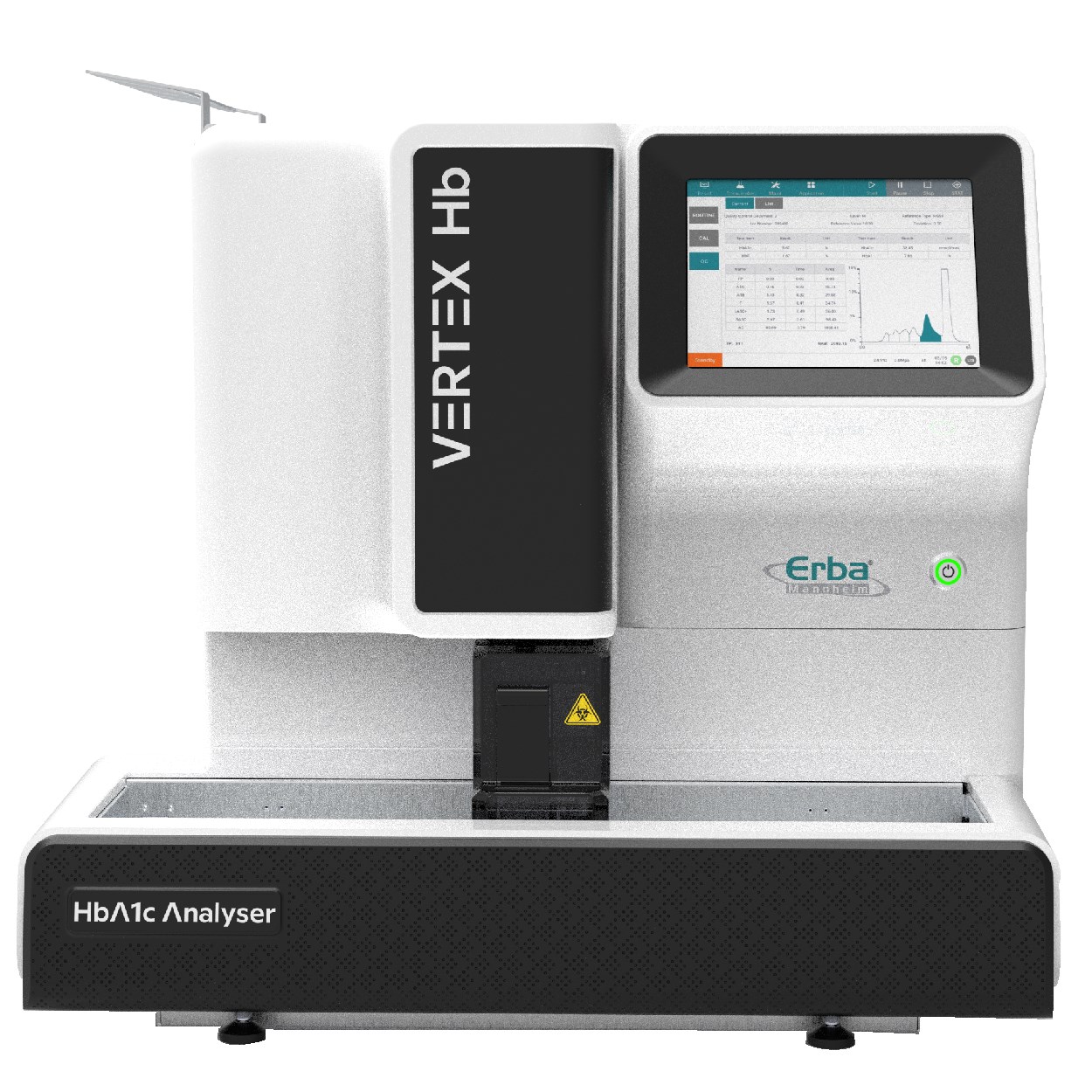

VERTEX Hb is an Automated Hba1c Testing System

Product DescriptionVERTEX Hb is an Automated Hba1c Testing System

Product Features:

  • Better precision, CV < 1.0 %
  • HbA1c test results in 60sec.
  • Auto cap piercing with precision sample probe.
  • Separation of hemoglobin fractions
  • No interference of HbF up to 10%
  • No interference of lipemia or icterus, can run on non-fasting patient samples
  • HbA1c reportability with HbS, HbC, HbD and HbE
  • Compact bench top model
  • User friendly touch screen operation
  • Sampling from multiple sized primary tubes, including Hitachi cups.
  • On board QC functions with Levey-Jennings and statistical calculations
  • Emergency sample position
  • Unlimited storage of calibration, QC data and chromatograms
  • No sample preparation required
  • Easy reagent and column replacement
  • Automated maintenance
  • RFID reagent identification and tracking
  • Automatic barcode identification of samples

Product Application: Hba1c Testing with Hb variants

  • Measurement Principle: Ion-exchange HPLC.
  • Sampler Handler: 10 Samples/ rack X 9 Rack Loader, positive identification by internal barcode reader.
  • Operation Interface: Android operation software, HDMI touch screen. Report format: Both IFCC (mmol/mol) and NGSP (%) results.
  • Sample Type: Whole blood and diluted blood
  • Time for Analysis: Standard Mode: 60s/Test Variant Mode: 96s/Test
  • Reporting Range: 3.0% ~ 20.0%
  • Emergency: 1 Stat position.
  • Sampling System: Sample Aspiration Probe coupled with a high precision,
  • Sample Aspiration Volume: 10 µl in whole blood, 670 µl in lysate mode.
  • Export & Communication: RS-232(Bi-directional).
  • Detector Type: UV-Vis
  • Reagent Traceability: RFID
  • Consumable: Elution buffer, hemolysis & wash solution, column, filter, calibrator, control.
  • Printer: Built- in thermal printer with possibility to connect to external printer
  • Data Storage: 100,000 results. Available for statistics, online queries, data backup, data export.
  • Dimensions & Weight: 560(L) X 590(W) X 490(H)mm, 45kg
