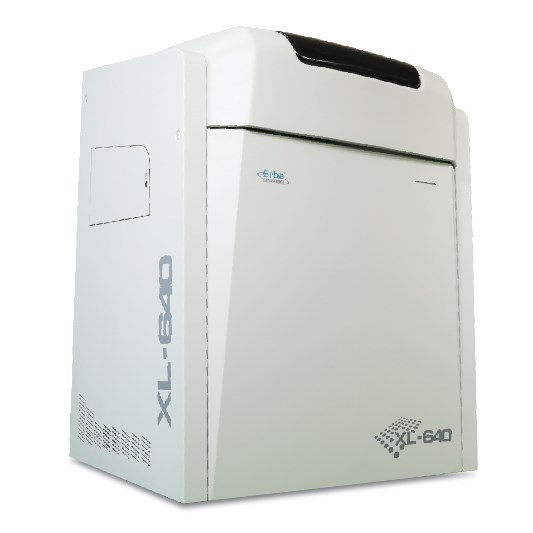

XL 640

Product Description:

XL 640 is a fully automated biochemistry analyzer with a throughput of 640 tests per hour. It is a dependable, powerful and robust analyzer to keep up with the heavy demands of everyday. XL 640 is designed to operate smoothly over the long haul and to deliver consistent quality report. XL 640 provides innovative solutions that meet the high productivity demands of laboratories having heavy testing pressure. It is equipped with excellent features which yield higher productivity, increased efficiency and greater cost savings for the laboratory. It has got the continuous loading facility for samples which make XL 640 the most dependable partner.

Product Features:

• Throughput of 400 tests/ hour (Photometric) and 640 tests/hour with ISE
• On-board cooling for reagents
• On-board Laundry
• Seperate probes for reagent R1 & R2 and dedicated probe for sample
• Clot detection for sample probe
• 72 permanant glass cuvettes help to reduce CPRT
• Automatic dilution for high abnormal samples & Auto Rerun facility
• Extensive QC Programmes with Levy –Jennings Curve & QC rules. Automatic calculation for Mean SD & CV%
• Direct loading for primary tubes
• Bi-directional connectivity

Product Applications:

• Substrates: Albumin, Bicarbonate, Bilirubin Direct, Bilirubin Total,  Calcium, Cholesterol, Creatinine, Glucose, Phosphorus, Total Protein, Triglycerides, Urinary Protein, Urea, Uric Acid, Phospholipids, Microprotein, Myoglobin, Microalbumin
• Enzymes: ACP, ALP, α Amylase, CHE, CK, CK-MB, GGT, GOT (AST), GPT (ALT), HBDH, LDH
• ISE: Sodium, Potassium, Chloride
• Immunoturbidimetric Assays: ApoA1, ApoB, ASO, CRP, Ferritin, HbA1c,RF, Transferrin,HDL Cholesterol, LDL Cholesterol

System General

System Type: Automated, Discrete, Random Access, Patient Prioritized Clinical Chemistry Analyzer

Throughput: 400 photometric tests/hour & 640 tests/hour with ISE (*optional ISE with Na, K, Cl, Li)

Analytical Methods: 1-Point, 2-Point, Rate-A, Rate-B, Direct Potentiometry(optional)

Barcode Reader: Both for Samples & Reagents (Optional)

Reactions Tray: 72 hard glass cuvettes

Reaction Mixing: Stirrer with variable speed

Reading Volume: 180 µl

On-Board Laundry: 6 stage cleaning, 2 stage drying

Photometer: Multi-wavelength diffraction grating with 12 wavelengths (340, 376, 415, 450, 480, 505, 546, 570, 600, 660, 700 & 750 nm)

O.D. Range: 0 - 3.0

Light Source: Halogen Lamp

Detector: Silicon Photodiodes

Water Consumption: < 14 liters/hour

Programmable Parameters: Default system pack parameters + upto 99 user defined parameters, Unlimited profiles and unlimited calculation items

Quality Control: Q.C. plot data with Q.C. Rules. Provision for lab mean. Twin plot.

Caliberation: K- factor, Linear (1,2 point and multipoint) 4P and 5P Logit-log, Cubic spline,exponential, polynomial. On-board serial dilution for calibrator

Power Requirement:

AC 220 V ± 10 %, 50 Hz or

AC 110 V ± 10 %, 60 Hz

Power Consumption: 800 VA

Dimensions: Approximately 897 mm (w) x 655 mm (D) x 1170 mm (H)

Weight: Approximately 200 Kg

Sample Handling

Sample: Serum, Plasma, Urine, CSF, Whole blood, other

Sample Unit: upto 82 positions for samples/STAT/calibrator/controls

Sample Pipetting: 2-70 µl (adjustable in 0.1 µl steps) for biochemistry,70 µl fixed for ISE capacitance probe with liquid level sensing and vertical obstruction detection , clot detection and serum indices.

Auto Rerun: Repeat with same, increade and decresaed volume (upto 1:150)

Sample Tubes/Cups: Primary tubes of 5 ml, 7ml and 10 ml and sample cups

Reagent Handling

Reagent Tray: 56 positions for reagents with on-board cooling

Reagent Pipetting:

R1: 60 - 300 µl (Adjustable in 1 µl step)

R2: 0 or 10 - 300  l  (Adjustable in 1 µl step)

Capacitance probe with level sensing and vertical obstruction detection

System Interface

Analyzer-PC: USB

PC- HOST Computer: Bidirectional TCP/IP and RS - 232

PC- Printer: USB

Operating System: Windows based

Database: Unlimited Results
